BIOSWING® Contact Module
BIOSWING® Contact Module
Item number:
55406
✅
Zusatzmodul für Posturomed® 202
✅
Taktiles Feedback, Hürde oder Widerstand – v. a. in Verbindung mit dem Rehamodul
✅
Variables Anbringen der Gummibänder in und um das Posturomed® möglich
BIOSWING® Contact Module
The contact module is used to apply tactile stimuli and thus optimise the execution of exercises. It is also extremely helpful in combination with the rehabilitation module: When used appropriately, it generates additional resistance that significantly increases the range of exercises with the rehabilitation module.

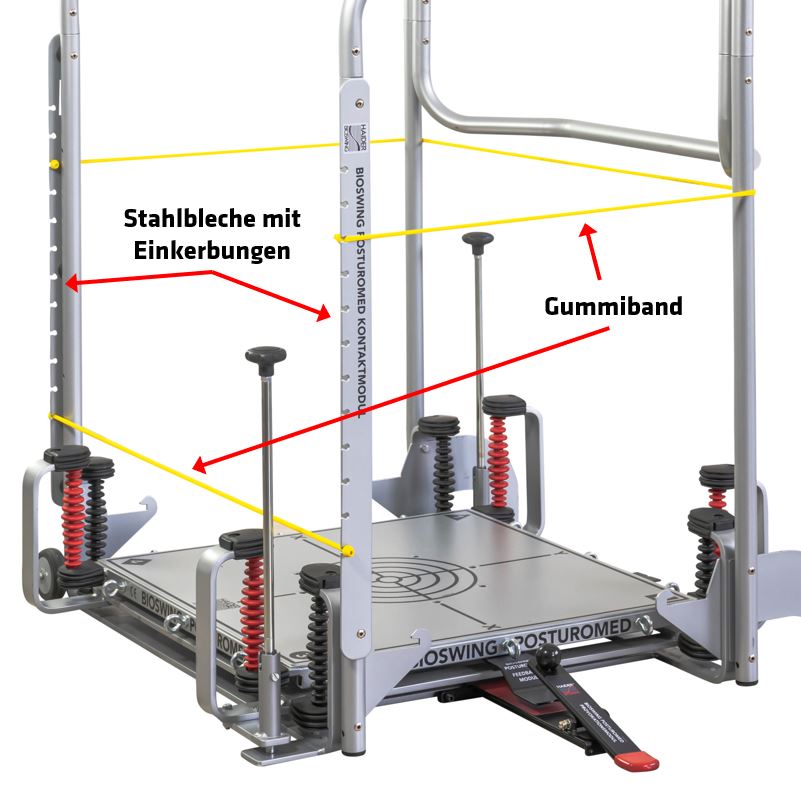

The contact module consists of two components:
- The two steel sheets are attached to the railing of the Posturomed® 202. The notches allow the rubber bands to be attached.
- A total of 4 rubber bands in two different lengths can be stretched as desired in and around the Posturomed® railing and attached to the notches of the steel sheets.
The contact module offers these possibilities:
- Tactile feedback: The rubber bands can be used to control the range of movement during exercises. For example, the patient lifts his leg until his foot touches the band.
- Resistance (especially in connection with the rehabilitation module): If a long rubber band is stretched completely around the railing, it can provide additional resistance during exercises with the rehabilitation module. Example: higher resistance during movements into adduction, abduction, extension or flexion.
- Hurdle: The rubber bands can be attached at an appropriate height and serve as a hurdle, for example for a big step or a jump onto the swing surface.
Product details:
- Scope of delivery: 2x steel sheets with notches, 2x long yellow rubber band, 2x short yellow rubber band.
- Optimal training possibilities in combination with the rehabilitation module
- Suitable for the Posturomed® 202
- NOT suitable for the Posturomed® compact
Login
Ähnliche Artikel
BIOSWING® rehabilitation module
€323.00*
The BIOSWING® rehabilitation module is an accessory for the BIOSWING® Posturomed 202. It is used for directional stabilisation exercises on the Posturomed 202. With the rehabilitation module, which can only be connected to the Posturomed® 202, pelvic, knee joint and ankle joint stabilisation exercises can be carried out in a closed kinetic chain in higher frequency muscle synergism. Due to the possible partial relief of the lower extremities, the rehabilitation module can be used in an early rehabilitation phase. Once the rehabilitation module is mounted, it can be easily and simply attached to the Posturomed with the plug-in system.
While the patient stands with one leg stable on the fixed element above the therapy surface (fixed point), the other leg stands unstable on the mobile element (mobile point), which is securely locked on the swinging therapy surface of the Posturomed®. With the help of the intervention traction or a cable traction device, the patient can additionally work against a resistance.
For optimal use of the rehabilitation module, visual feedback on compliance with the directions of movement specified by the therapist is required: either via the feedback module (mechanical) or via MicroSwing measuring system (electronic).
BIOSWING® feedback module
€214.00*
BIOSWING® feedback moduleThe feedback module for the Posturomed® 202 and the Posturomed® compact allows a more precise visual control of the vibrations of the therapy surface. This makes it easier for both the patient and the therapist to check whether certain exercises are being performed correctly or sufficiently.The feedback module consists of three red and three black plates. The black ones are attached to the vibrating surface on the front and both outer sides. The red counterparts are attached directly to the fixed part of the Posturomed® underneath the black plates. The black and red plates must each be installed so that they are exactly on top of each other.When the therapy surface vibrates during an exercise, the black plate also vibrates and you can see the "distance" to the red plate very well. This provides visual feedback on the movement and the direction of oscillation of the surface.The feedback module is useful to check the correct execution of exercises.Product details:
Scope of delivery: 3x black plate, 3x red plate.
Suitable for the Posturomed® 202 and the Posturomed® compact
Note: The black plate is used with the provocation module to attach the oscillating surface in a deflected position.
